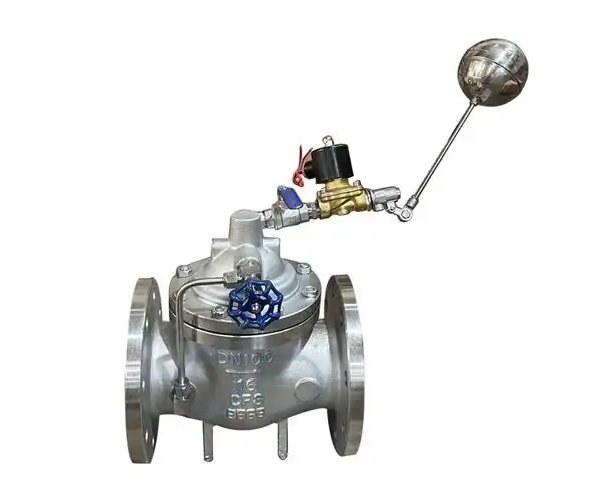

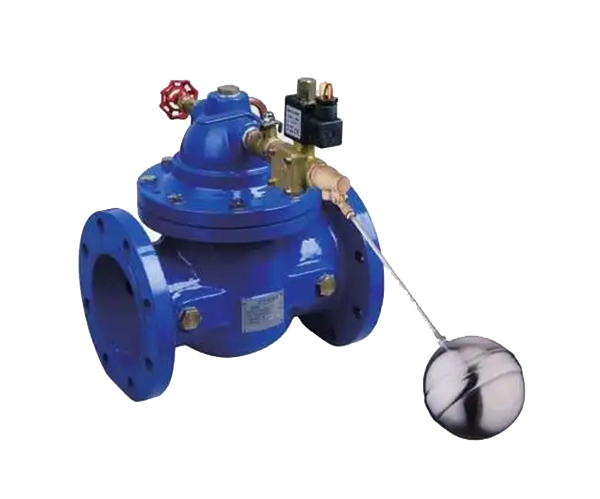

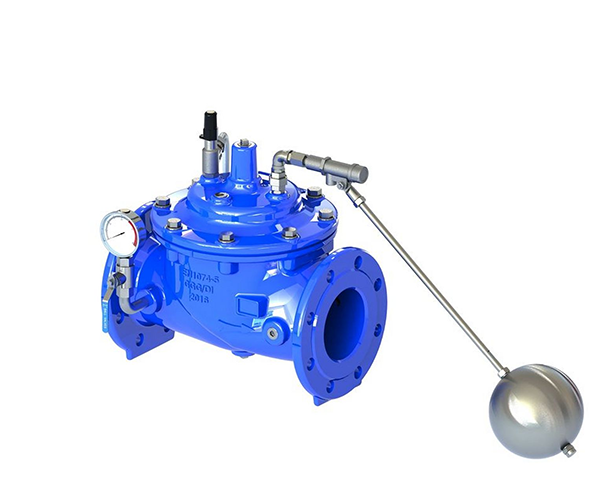

隔膜式电动远程浮球阀

产品概览

我们的 diaphragm-type electric remote float valve combines precise diaphragm actuation with float-controlled electric operation to deliver superior water level management. This advanced system provides dual-control capability - operating either automatically via float switch or remotely through electric signal.

The diaphragm electric remote control float valve is characterized by being installed on the pipes of various water supply systems, and opening or closing the valve according to the remote control electric signal or manual operation. They are often used in water supply systems where fire water and domestic water are connected in parallel, and are used to remotely control the valve to adjust the water supply direction. When a fire occurs, the firefighting urgently needs a large amount of water, and the remote control immediately cuts off the domestic water to ensure sufficient water for firefighting; when the firefighting stops using water and the pressure decreases, the remote control valve automatically opens and is in a normally open state to restore the domestic water supply. This valve eliminates the need for a separate fire-fighting water supply network, greatly saving construction costs and water consumption. The electric remote control valve has high control sensitivity, is safe and reliable, is easy to debug, and has a long service life.

主要功能

Dual Control Modes - Float switch auto-control + remote electric operationDiaphragm Actuator - Provides smooth, drip-tight shutoff (Class IV sealing)
Energy Efficient - Low-power consumption (24V/220V options)
Smart Connectivity - Optional IoT integration for remote monitoring
Corrosion-Resistant - 316SS diaphragm & EP-coated valve body

System Components

1. Diaphragm Valve Body - Precision-engineered water control

2. Electric Actuator - Fail-safe close/open operation

3. Floating Ball Sensor - Stainless steel construction

4. Control Box - With manual override function

Operation Modes

Automatic Mode:

• Float rises → Closes valve when tank full

• Float drops → Opens valve when level low

Remote Control Mode:

• Receives signal from control system

• Can override float operation when needed

应用

Smart Water Towers - Municipal water supply automation
Industrial Cooling Systems - Precise makeup water control
Fire Water Tanks - Reliable level maintenance
Wastewater Treatment - Chemical dosing tank control
