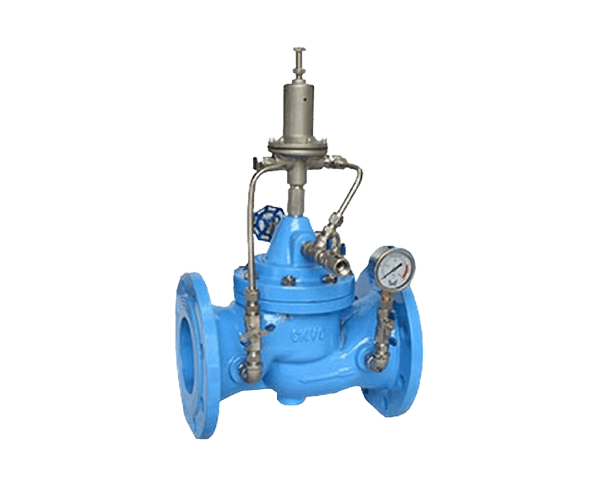

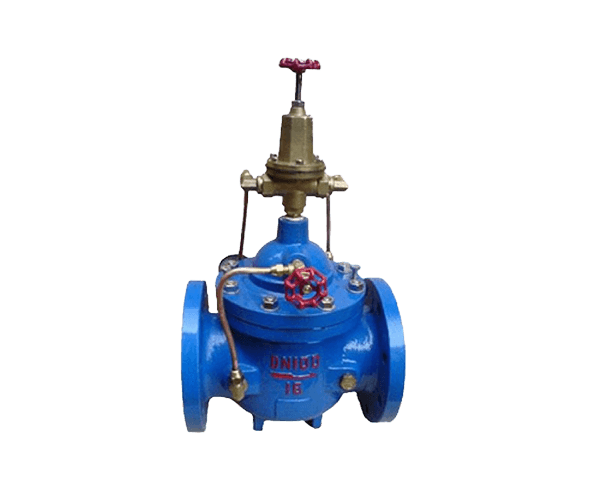

500X Pressure Relief Valve

500X Pressure Relief Valve

Type：500X
Our 500X pressure relief valve provides precise and reliable overpressure protection for water supply systems, specifically designed to prevent pipe bursts and equipment damage. The pilot-operated design ensures accurate pressure control with zero leakage during normal operation.
Category：Hydraulic control valve, Water pressure regulating valve
Working conditions：Building Construction, sewage treatment plant, water plant
Click here
Click here
Ball Valve
Electric Ball Valve
Pneumatic ball valve
Manual Ball Valve
High pressure ball valve
Four-way ball valve
Three-way ball valve
Threaded ball valve
Cryogenic ball valve
Top entry ball valve
Welded ball valve
Butterfly Valve
Electric butterfly valve
Pneumatic butterfly valve
Manual butterfly valve
Hard seal butterfly valve
Soft seal butterfly valve
High performance butterfly valve
Lug butterfly valve
Check valve
Axial flow check valve
Butterfly Check Valve
Swing Check Valve
Wafer Check Valve
Water check valve
Backflow preventer
Control Valve
Electric control valve
Pneumatic control valve
Self-operated control valve
Forged Steel Valve
Forged Steel Gate Valve
Forged Steel Globe Valve
Forged Steel Check Valve
Gate Valve
Flat Gate Valve
Knife gate valve
Soft seal gate valve
Wedge Gate Valve
Globe Valve
Angle globe valve
Straight-through globe valve
Water Control Valve
Vent valve
Flow Control Valve
Hydraulic control valve
Water pressure regulating valve
Sludge discharge valve
Threaded Valve
Threaded ball valve
Other Threaded Valve

Product Overview

Our 500X pressure relief valve provides precise and reliable overpressure protection for water supply systems, specifically designed to prevent pipe bursts and equipment damage. The pilot-operated design ensures accurate pressure control with zero leakage during normal operation.

Key Features

Precise Pressure Control – ±2% set pressure accuracy
Zero Leakage – Tight shutoff below set pressure
High Capacity – 30% greater flow than conventional valves
Corrosion-Resistant – 316 stainless steel trim standard
Easy Maintenance – In-line serviceable design

Working Principle

  1. Normal Operation: Main valve remains tightly closed

  2. Overpressure: Pilot system detects excess pressure

  3. Relief Phase: Main valve opens proportionally to overpressure

  4. Resetting: Automatically recloses when pressure normalizes

Applications

✔ Water Treatment Plants – Filter protection
✔ Pump Stations – Discharge line safety
✔ HVAC Systems – Chiller/boiler protection
✔ Fire Protection – Sprinkler system safeguards
✔ Industrial Water – Cooling system overpressure control

Medium
water

Working conditions

Building Construction, sewage treatment plant, water plant

Summarize

The 500X pressure relief valve delivers superior water system protection through:Precise pressure control – Maintains system integrityLeak-free operation – Saves water and energyHigh flow capacity – Handles emergency situations

Product Parameters

Size RangeDN50-DN600 (2"-24")
Pressure Range1.5-25 bar (20-360 psi)
Set Pressure Accuracy±2%
Body MaterialsDuctile Iron (epoxy coated), WCB, 304SS
Seat Material316SS + EPDM/NBR
Relief CapacityUp to 5,000 m³/h (water)
Temperature Range0-80°C (32-176°F)
