Forged steel cryogenic gate valve

Home
Forged steel cryogenic gate valve

Forged steel cryogenic gate valve

Type：DZ41Y
Subtitle：Liquefied gas valve
In summary, our DN15-DN50 forged steel cryogenic gate valve delivers reliable, leak-proof performance for compact cryogenic systems, featuring space-saving design, -196°C operation, and Class VI sealing - all built with durable ASTM A350 forged steel for long service life in LNG, lab, and gas applications. Contact us today for fast delivery from stock.
Label：Cryogenic valves, Hard sealed gate valves
Category：Forged Steel Gate Valve, Wedge Gate Valve
Working conditions：chemical plant, Cold storage low temperature conditions, food factory, Liquefied natural gas (LNG)
Click here
Click here
Ball Valve
Electric Ball Valve
Pneumatic ball valve
Manual Ball Valve
High pressure ball valve
Four-way ball valve
Three-way ball valve
Threaded ball valve
Cryogenic ball valve
Top entry ball valve
Welded ball valve
Butterfly Valve
Electric butterfly valve
Pneumatic butterfly valve
Manual butterfly valve
Hard seal butterfly valve
Soft seal butterfly valve
High performance butterfly valve
Lug butterfly valve
Check valve
Axial flow check valve
Butterfly Check Valve
Swing Check Valve
Wafer Check Valve
Water check valve
Backflow preventer
Control Valve
Electric control valve
Pneumatic control valve
Self-operated control valve
Forged Steel Valve
Forged Steel Gate Valve
Forged Steel Globe Valve
Forged Steel Check Valve
Gate Valve
Flat Gate Valve
Knife gate valve
Soft seal gate valve
Wedge Gate Valve
Globe Valve
Angle globe valve
Straight-through globe valve
Water Control Valve
Vent valve
Flow Control Valve
Hydraulic control valve
Water pressure regulating valve
Sludge discharge valve
Threaded Valve
Threaded ball valve
Other Threaded Valve

Product Overview

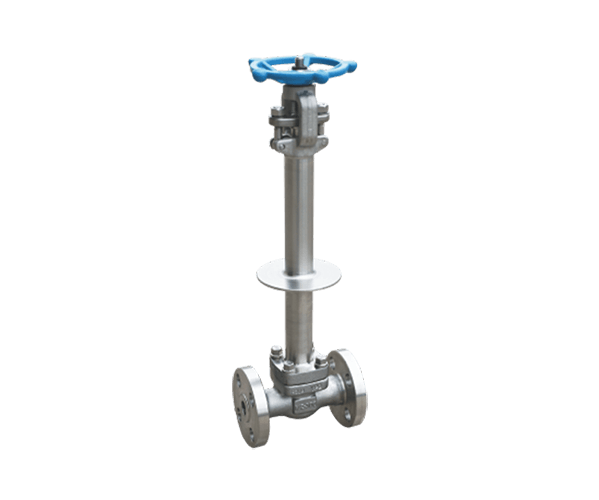

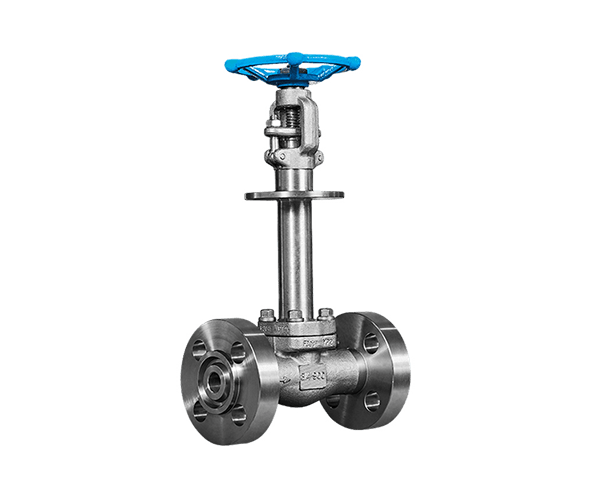

Our DN15-DN50 forged steel cryogenic gate valve is engineered for precision flow control in small-scale LNG, laboratory gas, and compact cryogenic systems. Manufactured from ASTM A350 LF2 forged steel with extended cryogenic bonnet design, it ensures bubble-tight shutoff at temperatures down to -196°C (-320°F).

Key Features

1. Precision Compact Design

  • Space-saving forged steel body optimized for DN15-DN50 pipelines
  • API 598 Class VI sealing with lapped seat surfaces
  • Low-profile flange design (EN 1092-1 compliant)

2. Certified Cryogenic Performance

  • Extended bonnet (200mm standard) prevents stem freezing
  • Deep cryogenic treatment with liquid nitrogen stabilization
  • Vacuum jacketing option for ultra-low temp insulation

3. Superior Forged Steel Construction

  • ASTM A350 LF2 forged body (SS304/316 stem optional)
  • STL hard-faced seats for extended service life
  • Fire-safe design compliant with API 607/6FA

Applications

1. Small-Scale LNG Systems

✔ LNG dispensing nozzles
✔ Mobile storage tank piping
✔ Skid-mounted vaporizers

2. Laboratory & Research

✔ Superconducting test rigs
✔ Precision gas delivery systems
✔ Instrument cooling circuits

3. Specialty Gas Engineering

✔ Electronic-grade gas control
✔ Medical gas distribution
✔ Semiconductor equipment

Competitive Advantages

FeatureOur ValveStandard Valve
Cryogenic SealLN2 tested zero-leakageAmbient temp only
Operation Torque≤20Nm (DN50)≥35Nm
Weight35% lighterStandard weight
Maintenance5-year service intervalAnnual maintenance

Medium
Liquefied gas, Liquid Nitrogen, Natural gas

Working conditions

chemical plant, Cold storage low temperature conditions, food factory, Liquefied natural gas (LNG), Petrochemical industry

Summarize

In summary, our DN15-DN50 forged steel cryogenic gate valve delivers reliable, leak-proof performance for compact cryogenic systems, featuring space-saving design, -196°C operation, and Class VI sealing – all built with durable ASTM A350 forged steel for long service life in LNG, lab, and gas applications. Contact us today for fast delivery from stock.

Product Parameters

Size RangeDN15-DN50 (½"-2")
Pressure RatingPN16-PN100 / Class 150-Class 600
Body MaterialASTM A350 LF2 Forged Steel,F304,F316,F304L,F316L
ConnectionsRF Flange / NPT/BSP Thread / Socket Weld
Temp Range-196°C to +80°C (extendable to -253°C)
Leakage ClassAPI 598 Class VI
