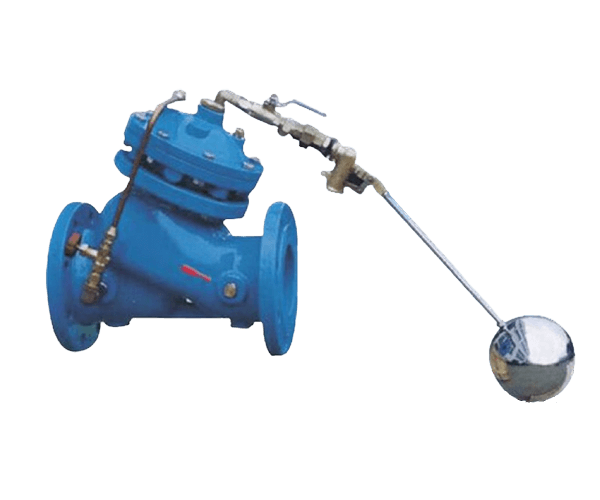

Remote Float Valve

Product Overview

Our remote float valve provides reliable water level regulation in tanks, reservoirs, and water storage systems. The floating ball mechanism automatically controls water flow based on liquid level, ensuring precise level maintenance without electrical power.

Structure Description

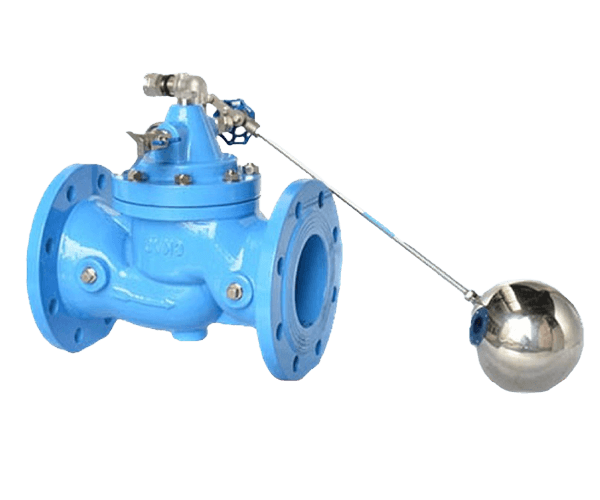

100X remote control float valve (principle description) consists of main valve, needle valve, ball valve, float valve, micro filter, etc. The hydraulic control takeover system has multiple functions of hydraulically operated valves, and is also a very common hydraulic level control valve.
The product should be installed at the water inlet of the pool or elevated water tower. When the water level reaches the set height, the main level valve is controlled by the float pilot valve to close the water inlet and stop the water supply; when the water level drops, the main valve and the float switch control to open the water inlet to fill the pool with water to achieve automatic water replenishment. The liquid level control is precise and not affected by water pressure; the 100X diaphragm remote control float valve can be installed at any position according to the height of the water pool and the use space. It is easy to maintain, debug and inspect, has reliable sealing and long service life. The diaphragm valve has reliable performance. High strength and flexible action are suitable for pipes with a diameter of less than 45MM. Piston type is recommended for pipes with a diameter of DN500MM or above. Liquid level control valves are widely used for liquid level control in water towers, pools and other facilities in water supply network systems in high-rise buildings and living areas.

Key Features

Mechanical Operation - No electricity required
Corrosion-Resistant - 304/316 stainless steel construction
Adjustable Float Arm - Customizable activation levels
Low Maintenance - Simple design for long service life
High Flow Capacity - DN50 to DN400 sizes available
